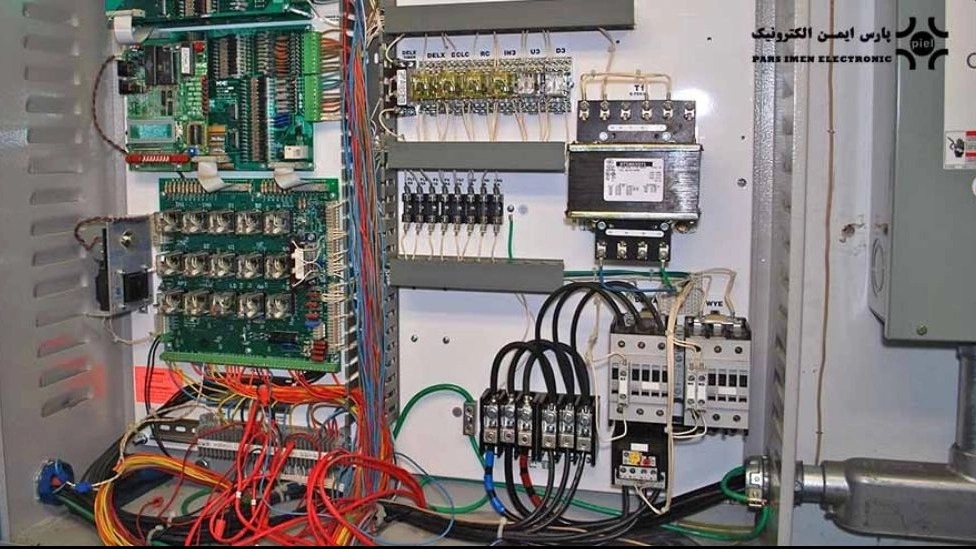

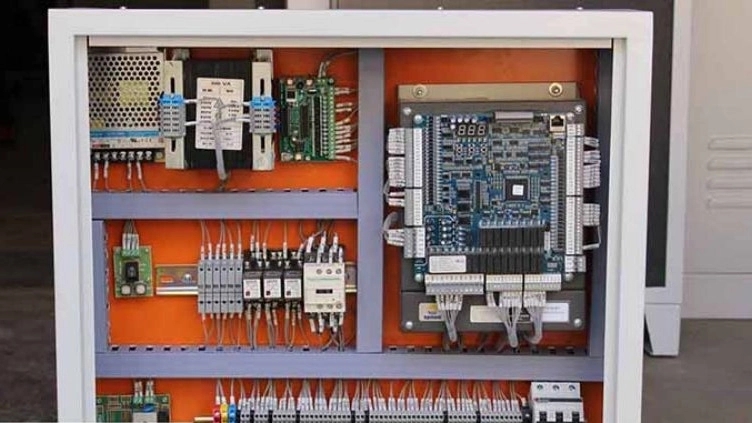

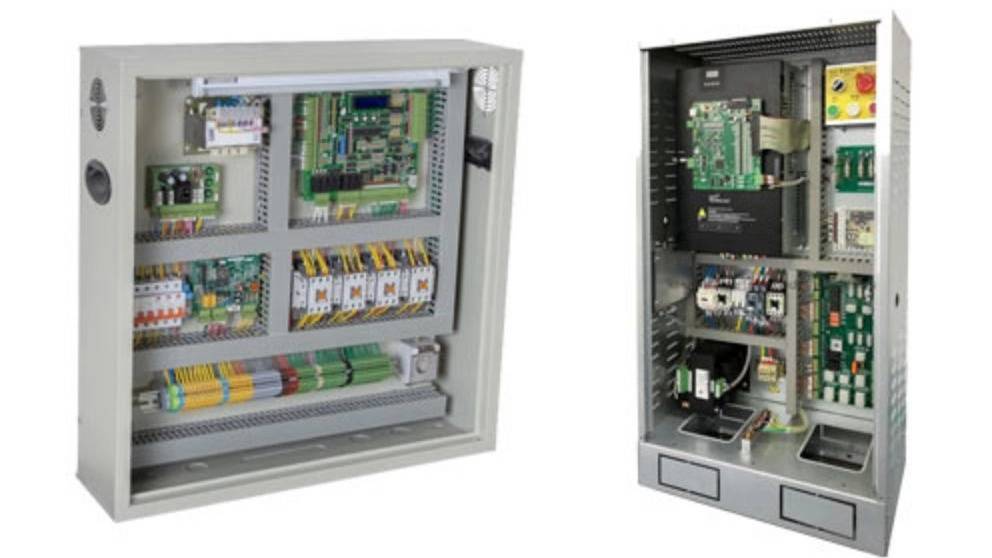

Hydraulic elevator control panel components

Basically, elevators or lifts are used to facilitate moving between floors in multi-story buildings. One of the common types of elevators in buildings is hydraulic elevators, which are easier and less expensive to install than others. Hydraulic elevators, despite being quiet and with a more reliable protection system, cannot be used in buildings with more than 10 floors.

A hydraulic lift moves using the force created through pressurized fluids. In other words, hydraulic elevators are built based on Pascal's law and operate on the same basis. In physics, Pascal's law says: "In the state of equilibrium, an incompressible fluid in a closed environment transmits the pressure exerted on itself without reduction to all other points of the fluid." How do you think this law works in the elevator industry?

Knowing the components of a hydraulic lift helps us to better understand how it works. The main components of a hydraulic lift are: The piston inside the cylinder (called the ram), the oil tank or tank, the pump, the motor (to drive the pump) and the valve. Keep in mind that the pump, fluid and motor are kept inside the elevator engine room. The hydraulic lift uses an oil-based system to move the pump cabin by applying pressure on the piston to push the oil to the cylinder. If you want to understand the up and down of the cabin in simple language, you just need to read the following text carefully once and visualize it. When you press the elevator button to move up, the oil is driven by a pump through pipes to a piston under the cabin; As the oil is pumped, the pressure pushes the elevator car up. In this process, a valve in the pipes prevents oil from returning. Now imagine going back down the same path. The valves in the pipes open and allow the fluid to flow back into the tank (this movement is facilitated by the gravity of the earth and the weight of the cabin).

Space: The components of the hydraulic lift are kept in the engine room, so it occupies less space Maintenance: This system will work well if proper care and maintenance is done. Their servicing is simple and fast, and due to fewer parts, the installation cost is low Weight capacity: Hydraulic lifts can usually have a higher weight limit because they are more powerful No possibility of falling: Since the hydraulic lift does not use cables and the system is based on pressure, there is no possibility of falling. In case of any failure, instead of falling suddenly, it moves according to the oil leakage. Therefore, the safety of the hydraulic system is a big advantage Noise: There is very little noise from the hydraulic house lift Power: Low power consumption makes the system affordable Cost: Hydraulic elevators are mechanically simpler and therefore cheaper than electric elevators

According to the above, do you think using a hydraulic lift is suitable for your home? We have good news and a special product for you. Special product of Arian Elevator Company: a consolidated product; Combining the use of hydraulic lift and driver in one control panel. Our experts at Arian company offer you a hydraulic control panel elevator with a drive so that you have several advantages at the same time. If you wish, our colleagues in the sales unit are available to you and are ready to provide you with adequate explanations and guidance.
